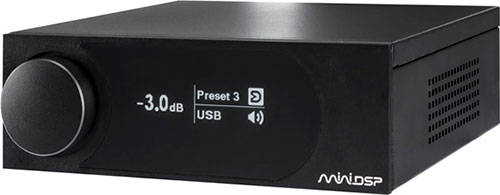

miniDSP SHD Power

SHD Power
SHD Power $1,549

The Streaming High Definition (SHD) Power is an all-in-one DSP solution with digital audio processing plus 120W stereo power amplifier. The array of digital inputs plus network streaming features allows the SHD Power to be integrated into any digital system. Dirac Live room correction can be applied to all inputs and sources. Additional features include matrix mixing, a parametric equalizer, and crossover functionality for active speaker or subwoofer management.

Network streaming is supported through Volumio which supports playback from your network, USB drives, Internet Radio, and Spotify. AirPlay is also supported.


  • 32-bit Analog Devices SHARC ADSP21489 / 450MHz
  • volume control, parametric equalizer, crossover, matrix mixing, compressor/limiter, mute
  • USB 2.0 control interface, audio connection, external hard disk
  • Gigabit Ethernet
  • Volumio network player
  • IR remote
  • black and white OLED front panel
